Industrial PCDanfoss 132F0058 VLT Micro Drive FC-051 11kW 15HP 380-480V VFD
- Brand: Danfoss
- Part Number: 132F0058
- Series: VLT Micro Drive FC-051
- Power Rating: 11 kW / 15 HP
- Input Voltage: 3 × 380–480V AC
- Input Frequency: 50/60 Hz
- Input Current: 33.0 / 29.0 A
- Output Frequency: 0–400 Hz
- Output Current: 23.0 / 21.0 A
- Enclosure: IP20 / Chassis
- Compact VLT Micro Drive design
- Suitable for variable-speed AC motor applications
- Ideal for pumps, fans, conveyors and compressors
- Suitable for HVAC and industrial automation applications
- Danfoss VLT drive technology
- Suitable for replacement, retrofit and maintenance requirements
| Brand | Danfoss |
|---|---|
| Category | AC DRIVE |
The Danfoss 132F0058 VLT Micro Drive FC-051 is a compact variable frequency drive engineered for dependable motor-speed control in industrial and commercial applications. With an 11 kW / 15 HP rating and 3-phase 380–480V AC input, it provides a practical solution for controlling compatible AC motors.
The drive supports an output frequency range of 0–400 Hz, making it suitable for applications requiring adjustable motor speed and controlled operation. Its compact design makes the FC-051 suitable for machinery where panel space is limited.
The Danfoss FC-051 is commonly suited to applications such as pumps, fans, conveyors, compressors, HVAC systems and general industrial motor control. It can also be used as a replacement or retrofit drive where the electrical specifications and application requirements are compatible.
| Specification | Details |
|---|---|
| Brand | Danfoss |
| Series | VLT Micro Drive FC-051 |
| Part Number | 132F0058 |
| Type Code | FC-051P11KT4E20H3BXCXXXXSXXX |
| Product Type | Variable Frequency Drive / AC Drive |
| Rated Power | 11 kW / 15 HP |
| Input Supply | 3 × 380–480V AC |
| Input Frequency | 50/60 Hz |
| Input Current | 33.0 / 29.0 A |
| Output Voltage | 3 × 0–Vin |
| Output Frequency | 0–400 Hz |
| Output Current | 23.0 / 21.0 A |
| Enclosure | IP20 / Chassis |
| Product Series | VLT Micro Drive |
| Applications | Pumps, Fans, Conveyors, Compressors, HVAC, Industrial Automation |
| Manufacturing | Made by Danfoss in India |

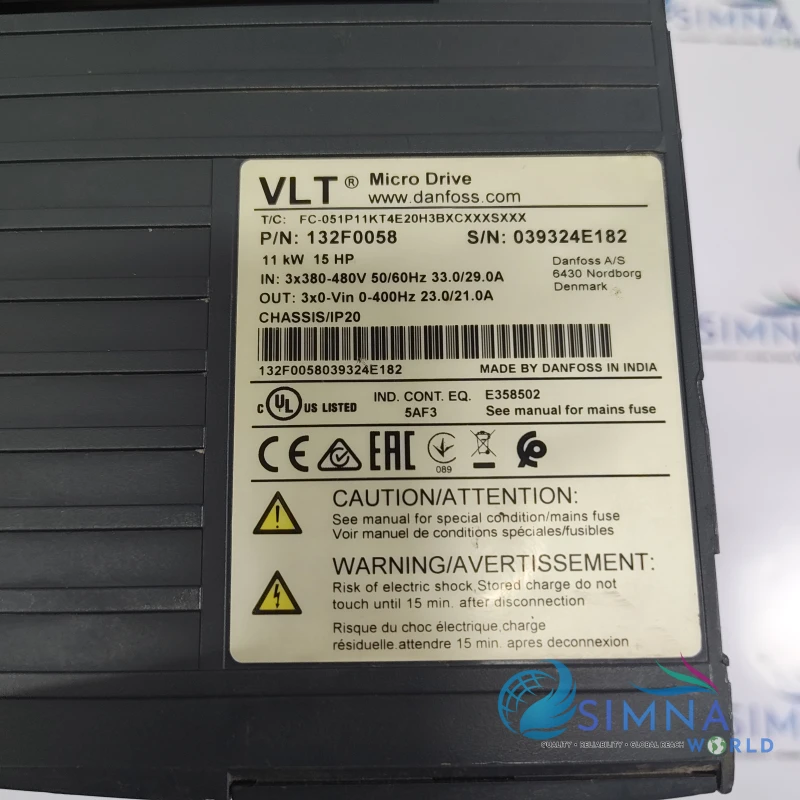

| Certifications/Marks | CE, UL, EAC and other markings shown on nameplate |
| Condition | Confirm actual stock condition/testing before sale |
| Packaging | Corrugated Box with Bubble Wrap / Foam Protection |
| Delivery Time | 3–7 Working Days |
