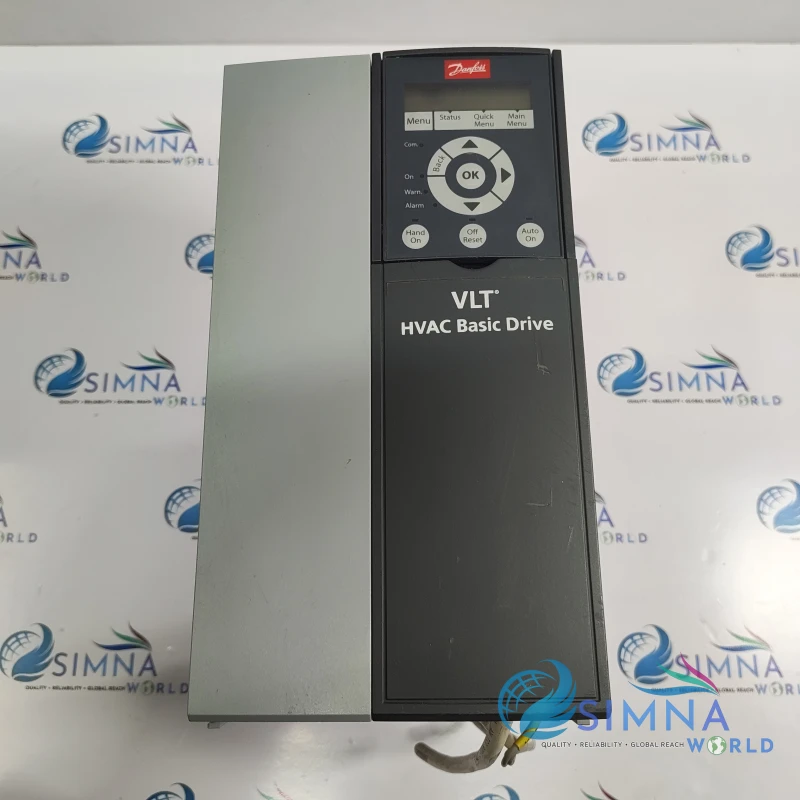

Industrial PCDanfoss 131L9869 VLT HVAC Basic Drive FC-101 11kW 15HP 380-480V
- Genuine Danfoss VLT HVAC Basic Drive
- Part Number: 131L9869
- Series: VLT HVAC Basic Drive FC-101

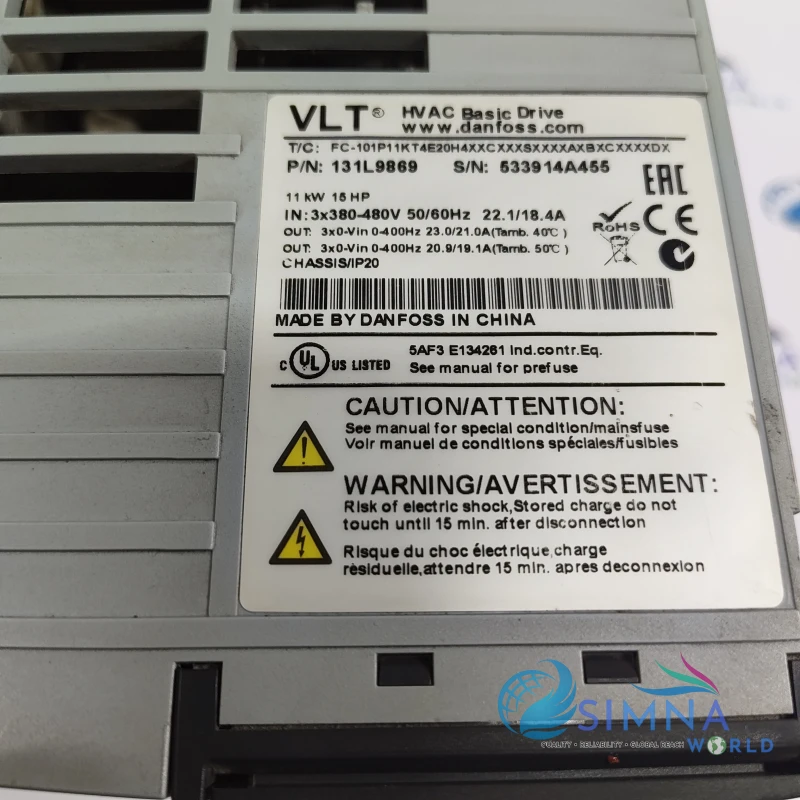

- Type Code: FC-101P11KT4E20H4XXCXXXSXXXXAXBXCXXXXDX
- Power Rating: 11 kW / 15 HP
- Input Voltage: 3 × 380–480 VAC
- Input Frequency: 50/60 Hz
- Output Frequency: 0–400 Hz
- Output Current: 23.0/21.0 A at 40°C
- Output Current: 20.9/19.1 A at 50°C
- Enclosure: IP20 / Chassis
- RFI Filter: Class A1 (C2)
- Frame Size: H4
- Coated PCB configuration
- No built-in brake chopper in this configuration
- No local control panel included in the specified configuration
- Suitable for HVAC, pumps, fans and compressor applications
- Approximate net weight: 7.9 kg
- Dimensions approximately 135 × 296 × 241 mm
| Brand | Danfoss |
|---|---|
| Category | AC DRIVE |
The Danfoss 131L9869 VLT HVAC Basic Drive FC-101 is an 11 kW / 15 HP three-phase variable frequency drive designed for reliable and efficient motor-speed control in HVAC and general motor applications. Its 380–480 VAC input and 0–400 Hz output range make it suitable for controlling compatible AC motors across a wide range of operating conditions.
This FC-101 drive is particularly suited to HVAC systems, ventilation fans, pumps, compressors and OEM machinery where variable-speed motor control and energy-efficient operation are required. Danfoss identifies the FC-101 platform as a solution for heating, ventilation, air-conditioning and simple compressor applications.
The 131L9869 configuration uses an IP20/chassis H4 frame, RFI Class A1 (C2) filtering and a coated PCB. The specified configuration does not include a local control panel or brake chopper, so the complete installation should be designed according to the required control and braking requirements.
| Specification | Details |
|---|---|
| Brand | Danfoss |
| Series | VLT HVAC Basic Drive FC-101 |
| Part Number | 131L9869 |
| Type Code | FC-101P11KT4E20H4XXCXXXSXXXXAXBXCXXXXDX |
| Drive Type | HVAC Variable Frequency Drive (VFD) |
| Rated Power | 11 kW / 15 HP |
| Input Voltage | 3 × 380–480 V AC |
| Input Frequency | 50/60 Hz |
| Input Current | 22.1 / 18.4 A |
| Output Frequency | 0–400 Hz |
| Output Current @ 40°C | 23.0 / 21.0 A |
| Output Current @ 50°C | 20.9 / 19.1 A |
| Enclosure | IP20 / Chassis |
| Frame Size | H4 |
| RFI Class | A1 (C2) |
| PCB | Coated PCB |
| Brake Chopper | Not included |
| Local Control Panel | Not included in specified configuration |
| Application | HVAC, Pumps, Fans, Compressors |
| Manufacturing | Made by Danfoss in China |
| Certifications/Marks | CE, UL, RoHS, EAC |
| Cooling | Forced-air cooling |
| Product Condition | Verify actual condition before purchase |
| Packaging | Corrugated Box with Bubble Wrap / Foam Protection |
| Delivery Time | 3–7 Working Days |
