Industrial PCDanfoss 131L9867 VLT HVAC Basic Drive FC-101 5.5kW 7.5HP
- Genuine Danfoss VLT HVAC Basic Drive FC 101
- Exact part number 131L9867
- 5.5 kW / 7.5 HP power rating
- Three-phase 380–480 VAC input
- 0–400 Hz output frequency
- Approximately 12 A output current
- Compact H3 frame
- IP20 / Chassis enclosure
- Built-in RFI Class A1 (C2) filter
- Coated PCB for improved environmental protection
- No brake chopper
- Designed specifically for HVAC applications
- Suitable for HVAC fans and pumps
- Suitable for air-handling units and ventilation systems
- Suitable for cooling towers and pump stations
- RS-485 / Modbus RTU communication capability
- Ideal for HVAC automation, retrofit and replacement applications
| Brand | Danfoss |
|---|---|
| Category | AC DRIVE |
The Danfoss 131L9867 VLT HVAC Basic Drive FC 101 is a 5.5 kW / 7.5 HP variable frequency drive designed specifically for HVAC applications. It accepts a three-phase 380–480 VAC supply and provides variable-frequency motor control up to 400 Hz.
The FC 101 series is designed to control the speed of HVAC fans, pumps, air-handling equipment, cooling towers and ventilation systems, allowing motor operation to be adjusted according to the required airflow or water flow. This makes it suitable for energy-conscious HVAC installations and industrial building services.
The exact 131L9867 configuration features an IP20/chassis enclosure, H3 frame, RFI Class A1 (C2) filter, coated PCB and no brake chopper. It is supplied without a local control panel according to the configuration code.
This Danfoss VFD is a strong replacement option for existing FC 101 installations and can be used in HVAC maintenance, automation upgrades, pump control, ventilation systems and industrial building applications.
- Manufacturer: Danfoss
- Series: VLT HVAC Basic Drive FC 101
- Part Number: 131L9867

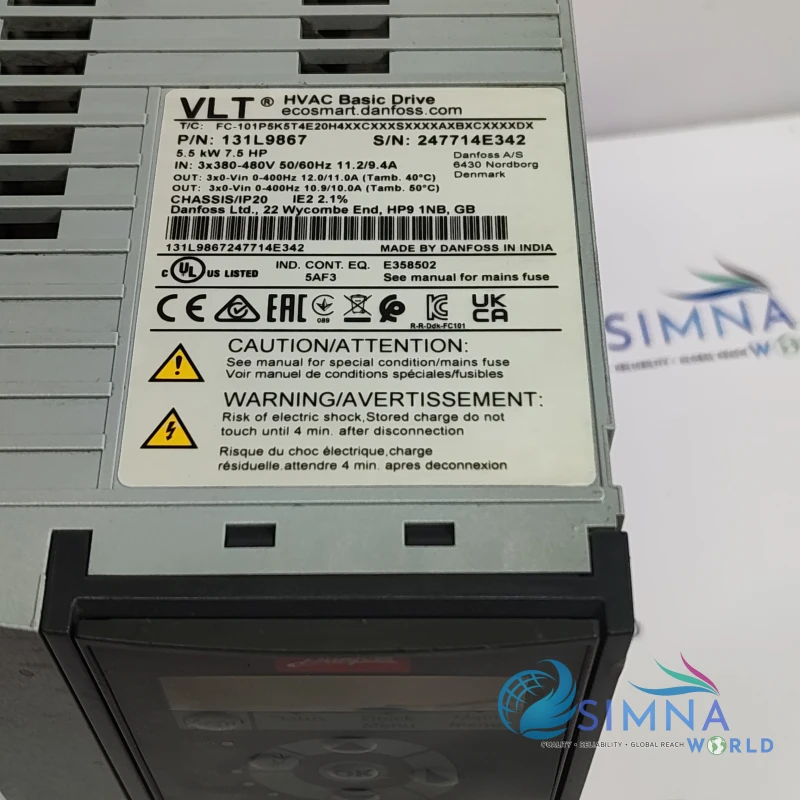

- Full Type Code: FC-101P5K5T4E20H4XXCXXXSXXXXAXBXCXXXXDX
- Power: 5.5 kW / 7.5 HP
- Input: 3 × 380–480 VAC
- Input Frequency: 50/60 Hz
- Output: 3 × 0–Vin
- Output Frequency: 0–400 Hz
- Output Current: 12.0/11.0 A
- Protection: IP20 / Chassis
- Frame: H3
- RFI: Class A1 (C2)
- PCB Coating: Coated PCB
- Brake: No brake chopper
- LCP: No local control panel
- Communication: RS-485 / Modbus RTU
- Typical Applications: HVAC, fans, pumps, AHU, ventilation, cooling towers and pump stations
- Condition: New / Used / Surplus / Refurbished depending on available stock
- Packaging: Corrugated box with bubble wrap / foam protection
- Delivery: 3–7 working days, subject to stock and destination
- Compatibility: Confirm exact type code, software/configuration and application requirements before installation
