Industrial PCWoodward Easygen-3000XT Genset Controller with Display HMI Power Management
- Brand: Woodward
- Product Family: Easygen-3000XT
- Product Type: Digital Genset Controller
- Integrated LCD/HMI display
- Generator start/stop control
- Generator protection functions
- Automatic mains failure (AMF) applications
- Generator synchronization
- Load-sharing functionality
- Power management capabilities
- Utility/grid paralleling applications
- Peak shaving and import/export control
- Supports islanded prime-power applications
- Suitable for CHP/cogeneration systems
- CAN-based generator networking
- J1939 engine communication capability
- Configurable control logic
- Suitable for multi-genset power systems
- Suitable for marine ship/shore power applications
- Designed for generator OEMs, switchgear builders and system integrators
- Suitable for replacement and retrofit applications
| Brand | |
|---|---|
| Category | HMI |
The Woodward Easygen-3000XT Genset Controller is a professional generator automation and power-management solution designed for demanding power-generation applications. It combines generator control, protection, synchronization and power-management functions in a single controller platform.
The controller is suitable for standby generators, prime-power systems, AMF/ATS applications, CHP systems, islanded power systems and utility-paralleled generator installations. Its configurable architecture allows it to be integrated into different generator and switchgear configurations.
For multi-generator systems, the easYgen-3000XT supports CAN-based load sharing and coordinated generator operation. Woodward also provides support for J1939 engine communication and advanced power-management functions.
The front-panel HMI shown in the photograph provides an operator interface for monitoring and controlling the genset. Exact model variant and part number should be confirmed from the rear nameplate before ordering, because the 3000XT family contains multiple configurations.
| Specification | Details |
|---|---|
| Brand | Woodward |
| Product Family | Easygen-3000XT |
| Product Type | Genset Controller / Power Management Controller |
| Display | Integrated HMI / LCD Display |
| Mounting Style | Front Panel |
| Generator Control | Yes |
| Generator Protection | Yes |
| Synchronization | Supported |
| Load Sharing | Supported |
| Genset Networking | CAN Bus |
| Engine Communication | J1939 supported |
| AMF Application | Supported |
| CHP Application | Supported |
| Islanded Prime Power | Supported |
| Utility Paralleling | Supported |
| Peak Shaving | Supported |
| Import / Export Control | Supported |
| Marine Application | Ship / Shore Power |
| Multi-Genset Operation | Up to 32 gensets in applicable configurations |
| Application | Diesel Generators, Gas Generators, Power Plants, Microgrids |

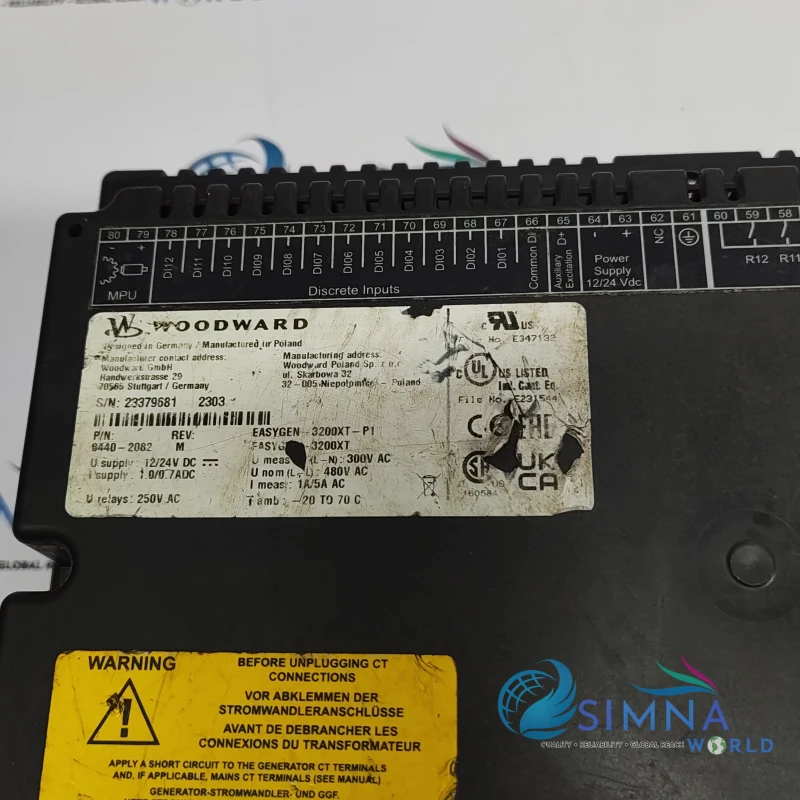

| Exact Part Number | To be confirmed from rear nameplate |
| Exact Variant | To be confirmed |
| Condition | Used / Surplus / Refurbished – verify actual condition |
| Packaging | Corrugated Box with Bubble Wrap / Foam Protection |
| Delivery Time | 3–7 Working Days |
