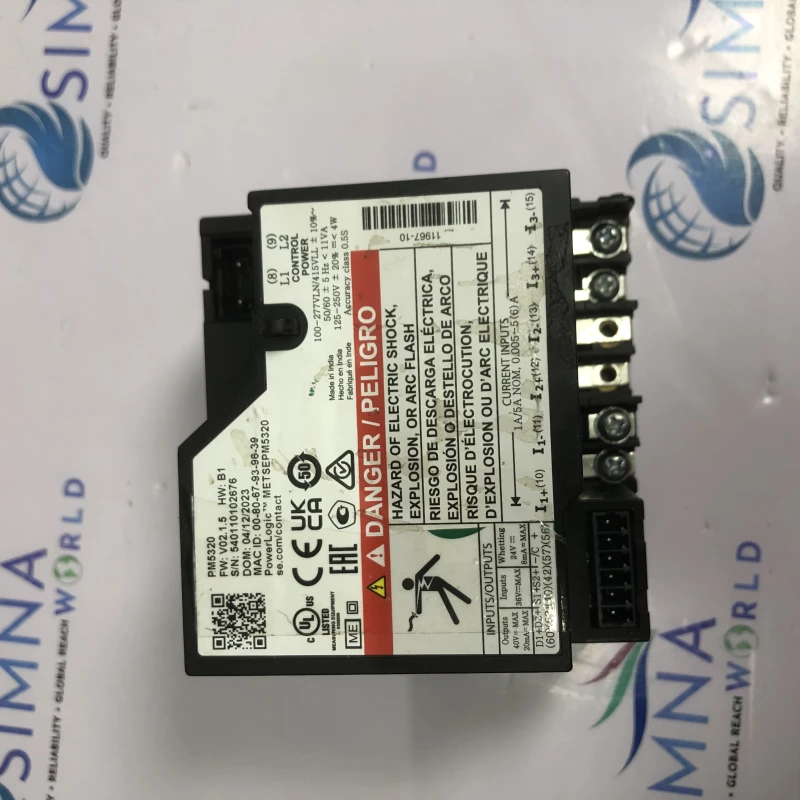

Schneider Electric PowerLogic PM5320 Power Meter

Name: Schneider Electric PowerLogic PM5320 Power Meter
Brand: Schneider
SKU: 172
Price: 32.92 USD
Availability: InStock

Our Price

$ 32.92 $ 36.58 -10%

USED

Available 5

Brand: Schneider Electric
Product Name: PowerLogic PM5320 Power Meter
Model Number: PM5320
Series: PowerLogic PM5000 Series
Product Type: Digital Power Meter
Measurement Type: Three Phase Power Measurement
Display Type: Backlit LCD Display
Voltage Measurement: Up to 690V AC
Current Measurement: Via External CT
Frequency Range: 45–65 Hz
Accuracy Class: Class 0.5S (Energy)
Communication Port: RS485
Protocol: Modbus RTU
Digital Inputs: Yes
Digital Outputs: Yes
Power Supply: 44–277V AC / 50–300V DC
Mounting Type: Panel Mount
Protection Rating: Front IP52
Operating Temperature: -25°C to +70°C
Application: Energy Monitoring & Power Management
Standards Compliance: IEC 62053 / IEC 61557
Three-phase energy and power monitoring
High accuracy Class 0.5S measurement
RS485 Modbus communication support
Backlit LCD display for clear readings
Measures voltage, current, power, and energy
Compact panel mount design
Wide control power supply range
Digital input and output support
Real-time power quality monitoring
Suitable for industrial and commercial use
Compatible with SCADA and BMS systems
Reliable Schneider PowerLogic series meter

Brand	Schneider
Category	METER

Ask for Inquiry

Free Shipping

For Indian customers

Secure Payment

100% protected

Export Quality

Authentic & Certified

Fast Delivery

Worldwide shipping

The Schneider Electric PowerLogic PM5320 is a high-performance three-phase digital power meter designed for accurate energy monitoring and electrical system analysis. It provides precise measurements of voltage, current, power, frequency, and energy consumption for industrial and commercial applications.

The PM5320 features a backlit LCD display for easy parameter viewing and supports RS485 Modbus communication for integration with SCADA systems, PLCs, and building management systems. With Class 0.5S accuracy, the meter ensures reliable energy monitoring and power management.

Designed for panel mounting, the PowerLogic PM5320 operates on a wide control power supply range and supports external current transformers for flexible installation. It is ideal for switchboards, motor control centers, distribution panels, and energy management systems.
