Industrial PCPanasonic MBDHT2510E MINAS A5E Servo Driver
- Genuine Panasonic MINAS A5E MBDHT2510E servo driver for industrial motion-control applications.
- Designed specifically for precise position control using pulse-train commands.
- Supports single-phase or three-phase 200–240 V AC power input.
- Provides a high 2.3 kHz frequency response for responsive servo operation.
- Supports 20-bit incremental encoder feedback with 1,048,576-count resolution.
- Compact B-frame design measuring approximately 55 × 150 × 130 mm.
- Includes USB connectivity for parameter configuration and servo status monitoring from a computer.
- Provides multiple general-purpose digital I/O and pulse signal interfaces.
- Suitable for integration with Panasonic MINAS A5-series servo motors and compatible automation equipment.
- Ideal for machine automation, positioning systems, CNC equipment, packaging machinery, robotics and industrial motion-control applications.
- Particularly useful when sourcing replacement or spare servo drives for existing Panasonic automation systems.
| Brand | Panasonic |
|---|---|
| Category | Others |

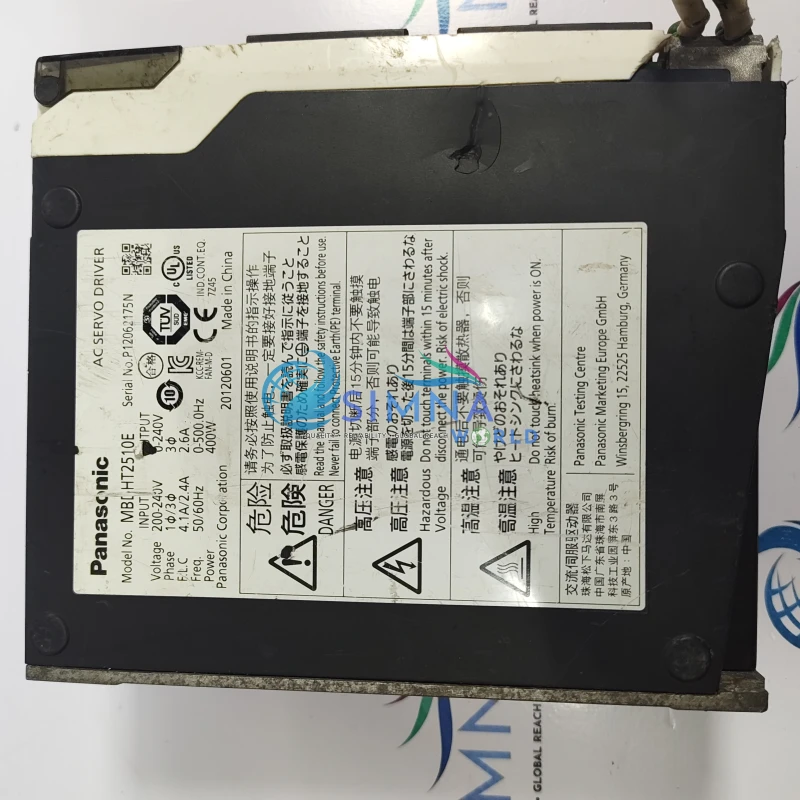

The Panasonic MBDHT2510E is a MINAS A5E series AC servo driver designed for accurate and responsive position control in industrial automation systems. This Panasonic servo amplifier uses pulse-train input for positioning applications and supports single-phase or three-phase 200–240 V AC power.
The MBDHT2510E provides a 2.3 kHz frequency response and 20-bit incremental encoder feedback with a resolution of 1,048,576 counts per revolution, helping deliver precise servo positioning and smooth machine operation.
For machine integration, the servo driver provides 10 general-purpose control inputs, 6 general-purpose outputs, 2 analog monitor outputs, pulse signal inputs and outputs, and a USB interface. The USB connection can be used for PC-based parameter setting and status monitoring.
The compact B-frame construction measures approximately 55 mm wide × 150 mm high × 130 mm deep and weighs approximately 1 kg. The unit does not include a built-in regenerative resistor, so an external regenerative resistor is required where applicable.
The Panasonic MBDHT2510E is suitable for industrial automation, precision positioning, machinery control, packaging equipment, robotics, CNC and other motion-control applications where accurate servo positioning is required.
Important: Panasonic currently identifies the MBDHT2510E as a discontinued product. Availability may therefore be through existing inventory, surplus stock, refurbished units or replacement-stock suppliers.
Manufacturer: Panasonic
Part Number: MBDHT2510E
Series: MINAS A5E
Product Category: Industrial AC Servo Drive
Application: Industrial Automation & Motion Control
Control Method: Position Control
Command Interface: Pulse Train
Input Voltage: 200–240 V AC
Phase: Single Phase / Three Phase
Frequency: 50/60 Hz
Maximum Current: 15 A
Frequency Response: 2.3 kHz
Encoder: 20-bit Incremental
USB Interface: Yes
Safety Function: No
Regenerative Resistor: External
Frame Size: B-Frame
Dimensions: 55 × 150 × 130 mm
Approx. Weight: 1 kg
Status: Discontinued
