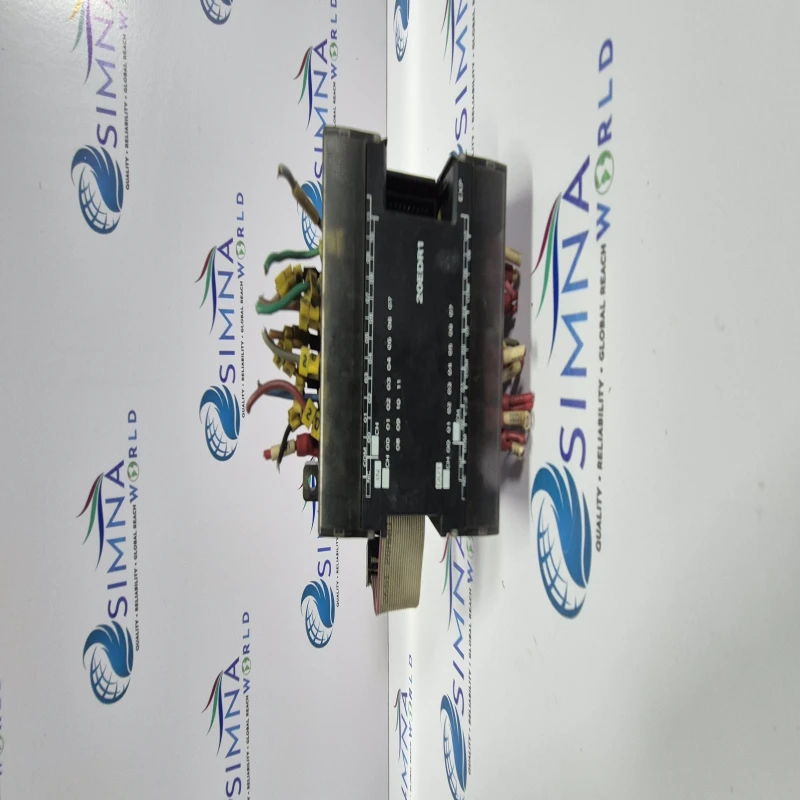

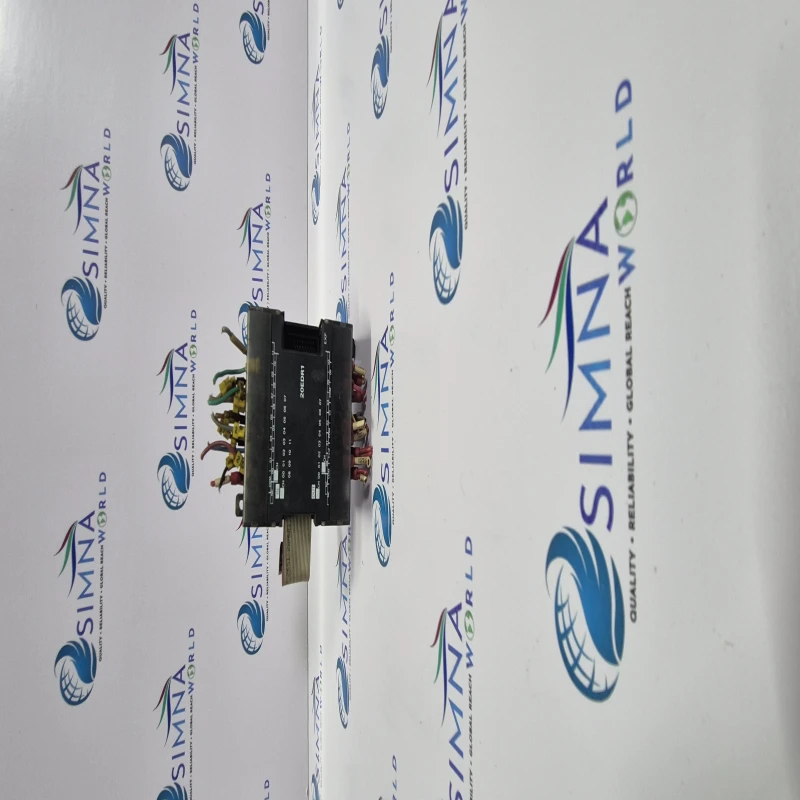

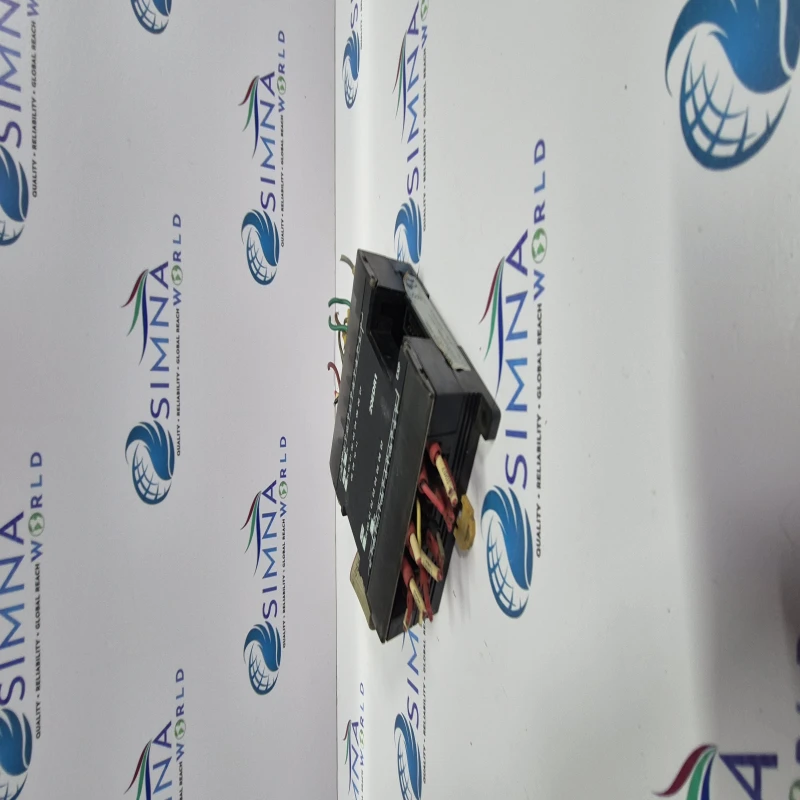

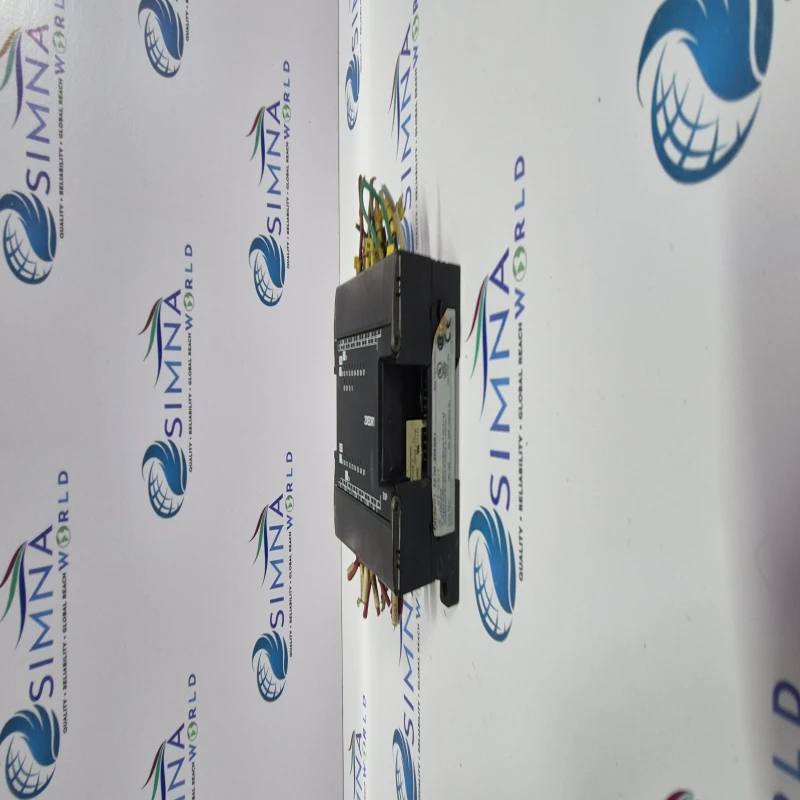

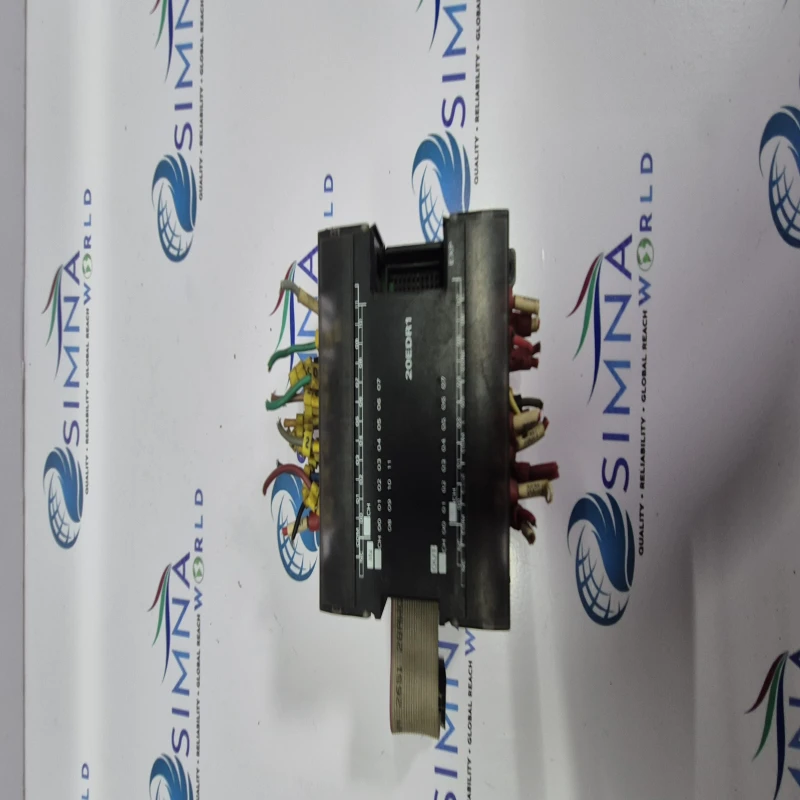

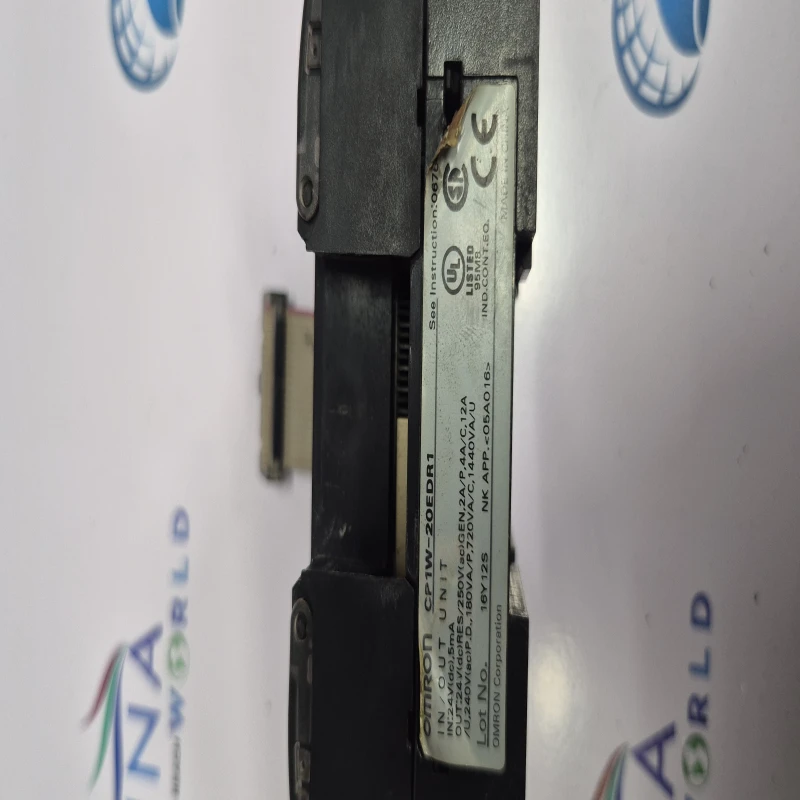

Industrial PCOmron CP1W-20EDR1 I/O Expansion Module
- Brand: Omron
- Model: CP1W-20EDR1
- Product Type: Digital I/O Expansion Unit
- Series: CP1W Expansion Series
- Input Points: 12 Digital Inputs
- Output Points: 8 Relay Outputs
- Total I/O: 20 Points
- Output Type: Relay Output
- Rated Input Voltage: 24 VDC
- Output Load: 250 VAC / 30 VDC (Relay)
- Connection Method: Screw Terminal Block
- Compatible PLC: CP1E, CP1L, CP1H Series
- Mounting Type: DIN Rail Mount
- Expansion Position: Right-side expansion
- Isolation: Photocoupler isolation for inputs
- Operating Temperature: 0°C to 55°C
- 20-point digital I/O expansion module
- 12 inputs and 8 relay outputs configuration
- Compatible with CP1E, CP1L, and CP1H PLCs
- Reliable relay outputs for mixed load control
- Compact design saves panel space
- Easy wiring with screw terminals
- High durability industrial-grade design
- Simple plug-in expansion for Omron PLC systems
- DIN rail mounting for fast installation
- Ideal for machine automation and panel builders
| Brand | omron |
|---|---|
| Category | MODULE |
The Omron CP1W-20EDR1 is a compact digital I/O expansion module designed to extend the functionality of CP1E, CP1L, and CP1H programmable logic controllers. This module provides 12 digital inputs and 8 relay outputs, allowing users to increase control capacity for industrial automation systems.
The CP1W-20EDR1 features relay outputs capable of switching both AC and DC loads, making it suitable for controlling solenoids, contactors, motors, and industrial actuators. Its compact DIN rail mount design allows easy installation inside control panels while maintaining high reliability.
This Omron expansion unit is ideal for packaging machines, conveyors, textile machinery, assembly automation, and OEM equipment. The module integrates seamlessly with Omron PLC systems and provides stable and long-term performance in industrial environments.
- Product Category: PLC Expansion Module
- Manufacturer: Omron
- Series: CP1W
- Model: CP1W-20EDR1
- I/O Type: Digital Input / Relay Output
- Inputs: 12 (24VDC)
- Outputs: 8 Relay Outputs
- Terminal Type: Screw Terminal
- Mounting: DIN Rail
- Compatible Controllers: CP1E / CP1L / CP1H
- Expansion Direction: Right Side
- Application: Industrial Automation
- Country of Origin: Japan / Indonesia (Varies)
- Warranty: 12 Months (Seller dependent)
